BOPP Hot Lamination Film manufacturner, Polypropylene lamination film,20mic, gloss and matt
BOPP Hot Lamination Film 20mic For Offset Printing
Specifications:
| TYPE | THICKNESS (micron) |
| Matt | TOTAL | BASE | EVA |
| 17 | 12 | 5 |
| 18 | 12 | 6 |
| 20 | 12 | 8 |
| 22 | 12 | 10 |
| 23 | 15 | 8 |
| 25 | 15 | 10 |
| 27 | 15 | 12 |
| 28 | 15 | 13 |
| 30 | 15 | 15 |
| 43 | 18 | 25 |
| WIDTH (mm) | 200 ~ 2210 |
| LENGTH (m) | 100 ~ 8000 |
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) |
| BONDING | ≤2 |
| CORONA TREATED | Double side |
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm |
| LAMINATION TEMP. | 90±10°C |
| ROLLER PRESSURE | 10 ~ 20Mpa |
| LAMINATION SPEED | 20 ~ 70M |
Description:
The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces. BOPP hot press film provides a matte finish on the surface of printed materials.
BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.
Why chooses NEI BOPP Thermal Lamination Film?
- Environmentally friendly:It is environmentally friendly, harmless to health, safe to use, and does not emit toxic gases or volatile substances. Do not use solvent based adhesives for safe bonding process.
- High function: Compared to other solvent coatings, our coatings have better clarity and adhesion. Strong powder absorption ability, preventing lamination, foaming, and easy tearing. Yaguang thermosensitive laminated film is suitable for on-site UV and hot stamping.
- Easy handling:It is easy to operate once the required temperature is met and no special technique required.
- Efficient and energy-saving: Production cost is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
- Adaptable to different kinds of machines: This film is recommended to be used in dry laminator. Small adjustments need to be made to the machine if the film is used in wet laminator.
Why chooses NEI?
- NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
- With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.
- Compared to other hot pressed films, our EVA adhesive is 100% imported from South Korea, ensuring the adhesion of the film.
- Customize size and thickness according to customer requests. Labels can be customized as well.
- A wide range of thermal lamination film and special films.
- Rapid production and delivery.
Special Instruction:
- NEI BOPP thermal lamination film matt film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
- It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
Applications:
Packaging:
Product Tags:
|
|

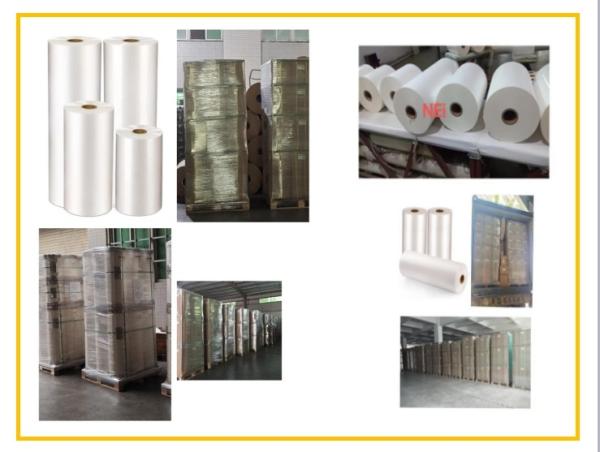

Efficient BOPP Hot Lamination Film 20mic For Offset Printing Images
|
